奧林比安 KHM 系列
微電腦裁切機
Microcomputer Cutting Machine
內置微電腦控制裝置, 可設定長度及數量, 作全自動裁切工作。適用如一般棉帶、皮帶、膠帶、鬆緊帶、拉鍊、幼繩、幼管…。
Microcomputer is adopted. It can control the automatic cutting with length and quantity setting. It is suitable for elastic, zipper and normal belt or cord made by cotton, PVC, plastic, leather…
|
裁切長度 Cutting
Length
|
30mm ~
9999.9mm
|
|
裁切最大寬度
Max. Width
|
76mm
|
|
馬達動力 Motor
power
|
25W
|
|
電壓 Power
|
100V~240V
|
|
淨重/毛重
N.W./G.W.
|
21kg/22kg
|
|
機身量度 Machine
Meas.
|
310mm
x 200mm x 385mm
|
|
裝箱量度 Carton
Meas.
|
415mm
x 280mm x 460mm
|
熱/冷兩用微電腦裁切機
Thermo Microcomputer Cutting Machine
基本功能相同於KHM-808。本機另附加熱裝置, 針對PP帶、尼龍帶、編織帶、鬆緊帶等物料, 做出固結封口效果。加熱裝置有恆溫控制, 避免機身過熱。
Thermo-cutting focus on the PP belt, nylon belt, braided belt and elastic. The opening can be heated, then fixed and hardened. Its cold cutting is as same as KHM808.
|
裁切長度 Cutting
Length
|
30mm ~
9999.9mm
|
|
裁切最大寬度
Max. Width
|
102mm
|
|
馬達動力 Motor
power
|
25W
|
|
電壓 Power
|
100V~240V
|
|
淨重/毛重
N.W./G.W.
|
28.5kg/29.5kg
|
|
機身量度 Machine
Meas.
|
395mm
x 200mm x 385mm
|
|
裝箱量度 Carton
Meas.
|
500mm
x 300mm x 480mm
|
側送型送料器 Lateral Feeder
多用於包縫工作, 置於縫紉機的右側, 把綑條送至包縫器。
It is mainly used for binding, mounted on the table at the right hand side of sewing machine and feed tape into the binder.
|
馬達動力 Motor
power
|
8W
|
|
電壓 Power
|
100V~240V
|
|
淨重/毛重
N.W./G.W.
|
3.3kg/3.8kg
|
|
機身量度 Machine
Meas.
|
250mm
x 158mm x 220mm
|
|
裝箱量度 Carton
Meas.
|
350mm
x 258mm x 320mm
|

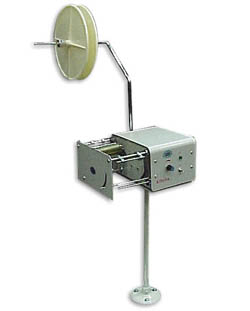

垂直型送料器 Downward Feeder
多用於面貼或鬆緊帶, 置於縫紉機後,由上而下把綑條或鬆緊帶送至機前。
It is mainly used for tape or elastic sewing, mounted behind the sewing machine and feed material into the machine.
|
馬達動力 Motor
power
|
8W
|
|
電壓 Power
|
100V~240V
|
|
淨重/毛重
N.W./G.W.
|
4.8kg/5.3kg
|
|
機身量度 Machine
Meas.
|
280mm
x 225mm x 145mm
|
|
裝箱量度 Carton
Meas.
|
380mm
x 325mm x 245mm
|

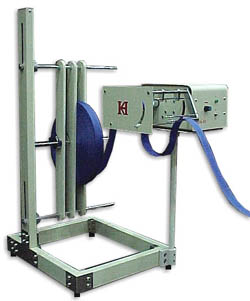

自動送料機 Auto-feeding Machine
作多用途送料,尤其配合KHM-808/809切帶機使用。可輸送較重或有彈性的物料。
For multi-purpose pre-feeding, especially for heavier and elastic material. It is applicable for KHM808/809 Cutting Machine.
|
馬達動力 Motor
power
|
12W
|
|
電壓 Power
|
100V~240V
|
|
淨重/毛重
N.W./G.W.
|
4.3kg/4.8kg
8.4kg/8.7kg |
|
機身量度 Machine
Meas.
|
280mm
x 225mm x 145mm
700mm x 105mm x 65mm |
|
裝箱量度 Carton
Meas.
|
380mm
x 325mm x 245mm
720mm x 125mm x 85mm |

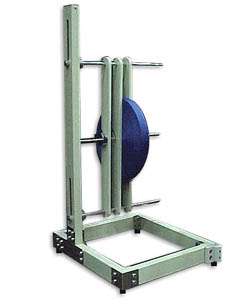

綑條架 Tape Reel Stand
可放置綑條等材料, 提高工作效率。
Tape or similar material can be placed properly for higher effectiveness.
|
淨重/毛重
N.W./G.W.
|
8.4kg/8.7kg
|
|
機身量度 Machine
Meas.
|
700mm
x 105mm x 65mm
|
|
裝箱量度 Carton
Meas.
|
720mm
x 125mm x 85mm
|
